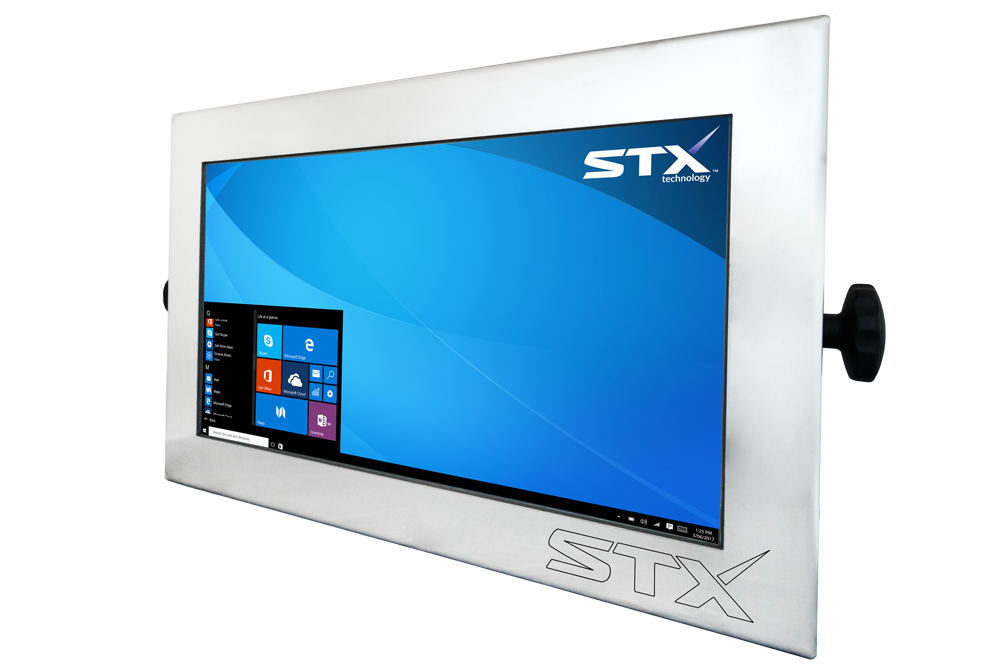

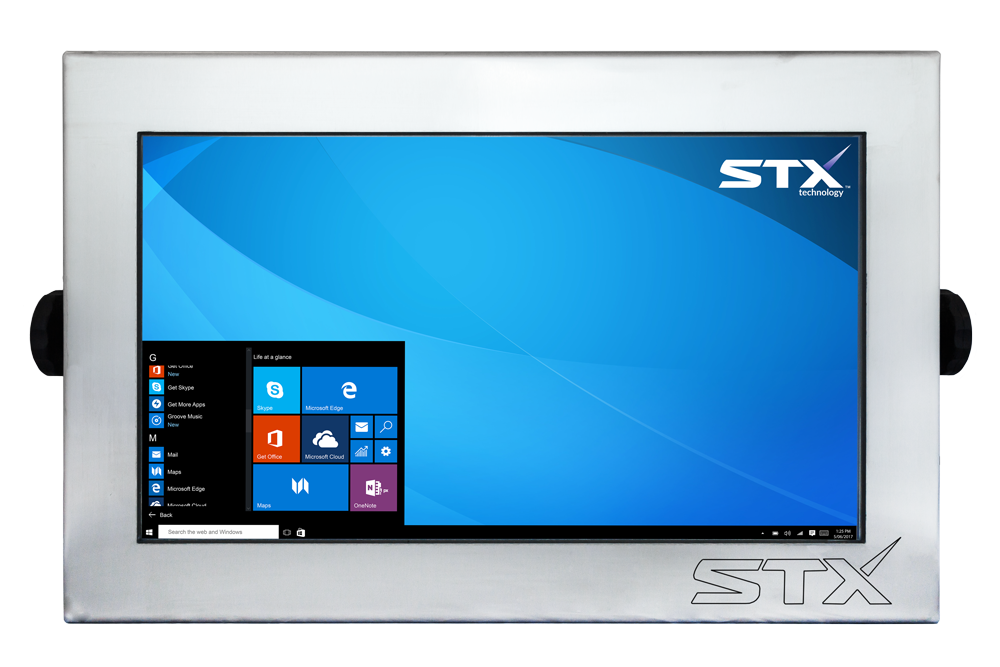

X7024 24 Inch Harsh Environment Touch Monitor

High Quality 24 inch Touch screen

1920 x 1080 Full HD (optional 1920 x 1200 WUXGA)

Tough Sacrificial Screen Membrane

Proven Reliability in Tough Rugged Harsh Environments

Fully sealed enclosure

304 Stainless Steel

IP67 / IP68 industrial connectors

VGA or DVI or HDMI Video Input

Overview
Key Features
Order Options
Accessories
Specifications
Similar Products

designed for industrial use

side stud mounting

Designed specifically for industrial use

10VDC~30VDC power input
High-quality touch screen
Fully sealed stainless-steel enclosure

Proven in extreme conditions

Strong enclosure
Fanless construction

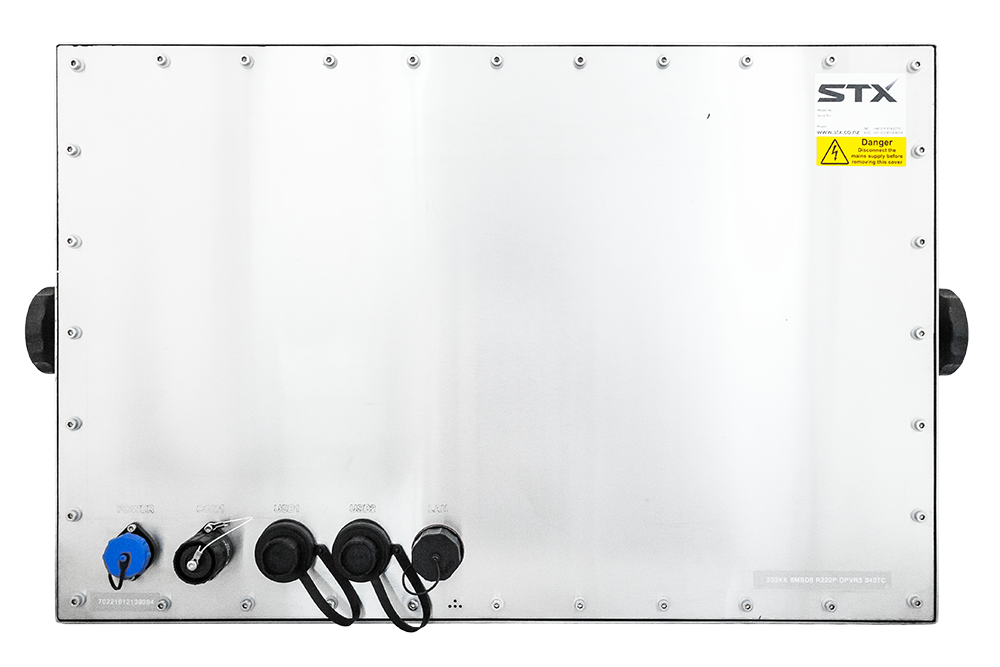

IP67 / IP68 connectors

Easy mounting options

Side Stud Mounting

ip rated industrial connectors

IP Rated industrial connectors

IP67 / IP68 industrial connectors

industrial use

Used across industries

Food Processing
Dairy
Automation & control
Mining

Agriculture
Horticulture
Forestry
Marine

applications

Information displayApplications

Safety
CCTV
Data collection
Loading Applications
barcode scanning

Contact the STX Team today to find out more about the X7024 Harsh Environment Touch Monitor and other products.

Designed and built for rugged harsh environments
Resistive or Projective Capacitive (PCAP) touch screen
304 or 316 brushed stainless steel finish
Fully sealed enclosure
10~30VDC power input
Highly polished finish, aluminium, powder coated
Tough sacrificial screen membrane
M10 side bolt mounting standard
IP67 / IP68 industrial connectors (conduit and other cabling options available)
Proven reliability in tough rugged harsh environments
New Zealand and Australian support

harsh touch environment monitor

Resistive

X7000 Monitor Range

Projective Capacitive

X7024-M-RT

Resistive touch screen
Stainless brushed finish
304 stainless steel
M10 side bolt mounting with starnuts
100~250VAC

X7024-M-PT

Projective Capacitive (PCAP) touch screen
Stainless brushed finish
304 stainless steel
M10 side bolt mounting with starnuts
100~250VAC

Options

High Brightness Displays:

600 nits for bright environments
1000 nits for outdoors

Materials and Finishes:

304 or 316 stainless steel
Brushed
Highly polished
Matte black

Resolution:

16:10 Display ratio
1920 x 1200 WUXGA

harsh touch environment monitor

Link Here to Industrial Panel PC Range

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

Touch
Touch Type	Resistive or Projective Capacitive (PCAP)

Display
LCD Size	24 inch, 16:9 (optional 16:10)
Colours	16.2 million
Resolution	1920 x 1080 Full HD (optional 1920 x 1200 WUXGA)
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	14.5 msec
Brightness (Typical)	300 nits (High Brightness options available)

Inputs
Power Input	240VAC or 110VAC or 10VDC~30VDC options
Touch	USB or RS-232 options
Video	VGA or HDMI or DVI options
Connectors	IP67 / IP68

Mechanical & Environmental
Finish	304 Stainless Steel, Brushed Finish (optional Highly Polished, Powder Coated, 316 Stainless Steel, Aluminium)
Mounting	M10 Side Mounts (optional VESA and other)
Temperature Control	HTT

Accessories
Barcode Scanner	Optional Built-In Barcode Scanner
Keyboard	Optional IP68 Keyboard and Keyboard Tray Kit
