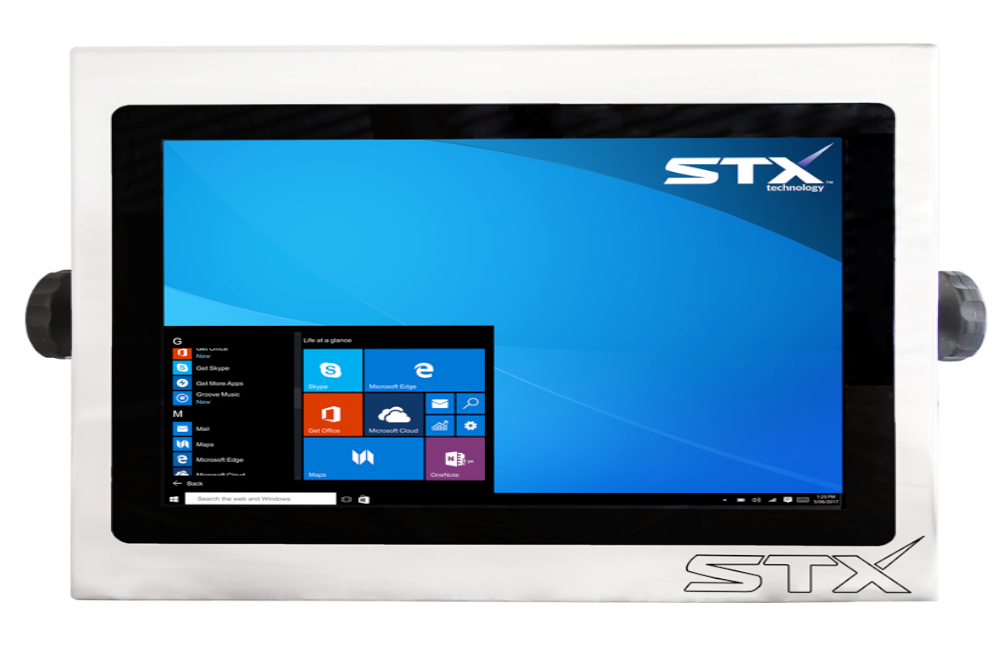

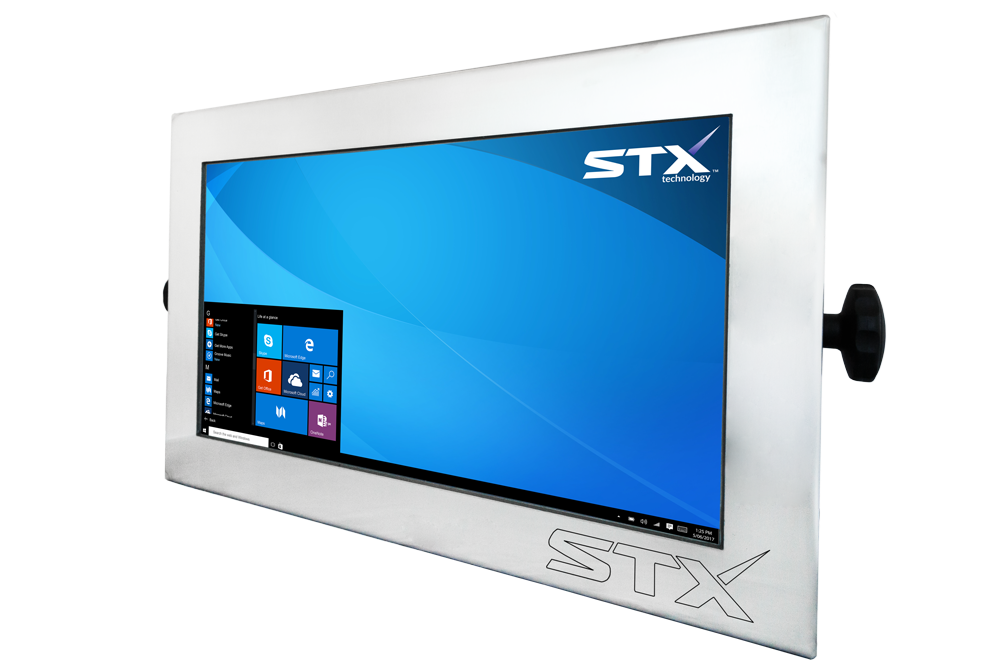

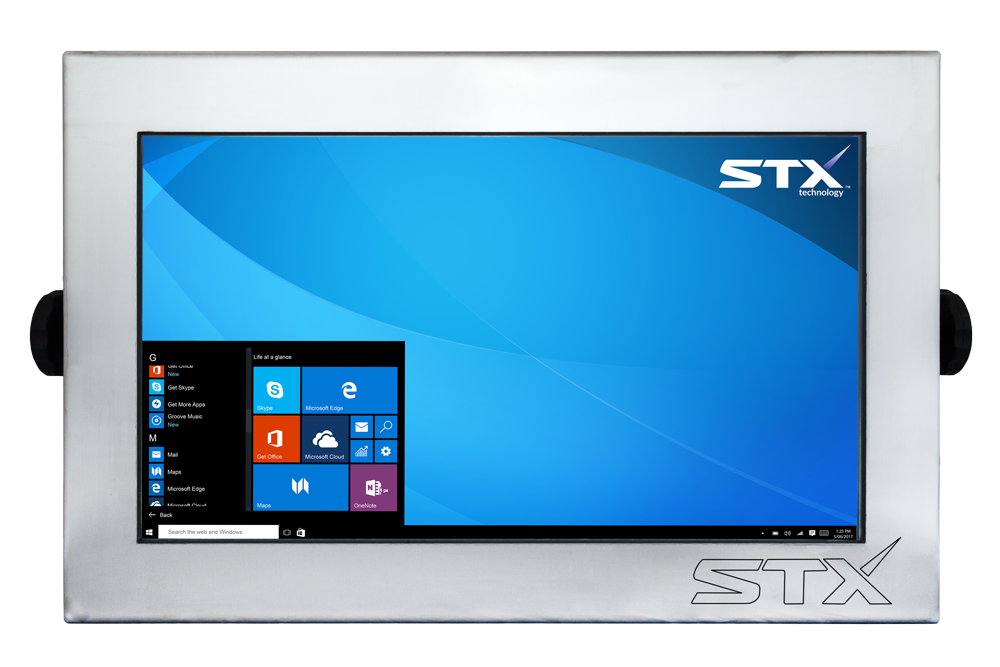

X7018 18.5 Inch Harsh Environment Touch Monitor

High Quality 18.5 inch Touch screen (16:9)

1920 x 1080 (Full HD)

Tough Sacrificial Screen Membrane

Proven Reliability in Tough Rugged Harsh Environments

Fully sealed enclosure

304 Stainless Steel

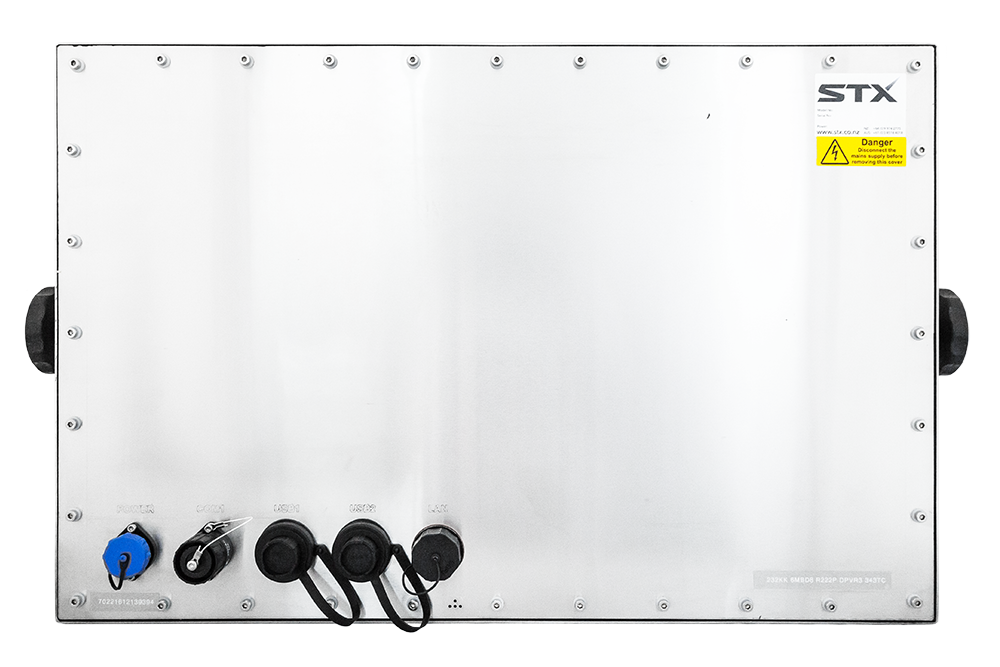

IP67 / IP68 industrial connectors

VGA or DVI or HDMI Video Input

designed for industrial use

side stud mounting

ip rated industrial connectors

industrial use

applications

Contact the STX Team today to find out more about the X7012 Harsh Environment Touch Monitor and other products.

harsh touch environment monitor

X7000 Monitor Range

X7018-M-RT

X7018-M-PT

High Brightness Displays:

Materials and Finishes:

harsh touch environment monitor

Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and keyboard mounting accessories

Touch
Touch Type	Resistive or Projective Capacitive (PCAP)

Display
LCD Size	18.5 inch, 16:9
Colours	16.2 million
Resolution	1920 x 1080
Other Supported Resolutions	1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio	500:1
Viewing Angle	Horizontal: ±70° or 140° total, Vertical: 60/55° or 115° total
Response Time	14.5 msec
Brightness (Typical)	300 nits (High Brightness options available)

Inputs
Power Input	240VAC or 110VAC or 10VDC~30VDC options
Touch	USB or RS-232 options
Video	VGA or HDMI or DVI options
Connectors	IP67 / IP68

Mechanical & Environmental
Finish	304 Stainless Steel, Brushed Finish (optional Highly Polished, Powder Coated, 316 Stainless Steel, Aluminium)
Mounting	M10 Side Mounts (optional VESA and other)
Temperature Control	HTT

Accessories
Barcode Scanner	Optional Built-In Barcode Scanner
Keyboard	Optional IP68 Keyboard and Keyboard Tray Kit

X9000 Computer Range	X7000 Monitor Range	X7500 Panel PC Range

Fully Sealed Stainless Steel Enclosure Shielded IP67 / IP68 Rated Connectors Engineered for Tough Washdown environments	Stainless Steel Enclosure IP67 / IP68 Rated Connectors M10 Side Bolt mounting	Fully Sealed Stainless Steel Enclosure Fanless Design Panel Mount
