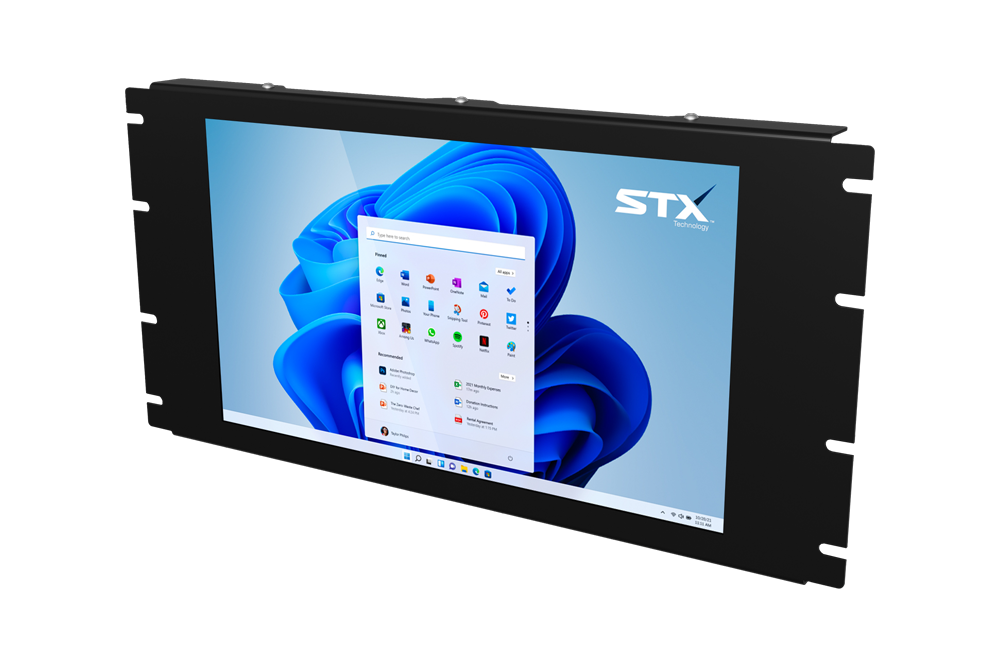

X5418 18 Inch Rack Mount PC
X5418 18 Inch Rack Mount PC X5418 18 Inch Rack Mount PC X5418 Rack Mount Touch Panel PC Ports

X5418 18.5 Inch Rack Mount PC

  • 18.5 inch Touch Screen
  • Resolution 1920x1080 16:9
  • Intel® Generation 11 CPU | ARM RK3588S
  • TPM 2.0
  • Windows | Linux | Android | Monitor
  • Tough Sleek Construction
  • All-In-One PC
  • 10VDC~30VDC Power Input
  • 19" Standard Rackmount
  • 5th Generation Product (G5)

industrial aluminium panel pc

 proven industrial product

vesa or panel mount

Engineered Tough for Extreme Environments

  • 10VDC~30VDC Power Input
  • Responsive Touch Screen
  • Rugged Steel Enclosure

Proven in Industrial Environments

  • Carbon Steel Enclosure

Easy Mounting Options

  • VESA Mount
  • Panel Mount

ports

 industrial use

application

Ports

  • 1 x Power
  • 1 x Ethernet
  • 1 x USB

Used Across Industries

  • Warehousing
  • Food Processing
  • Dairy
  • Mining
  • Process Control
  • Automation & Control
  • Plant Automation
  • Industrial Control
  • Construction

Applications

  • Information Display
  • Safety
  • Data Acquisition
  • Networking
  • SCADA/MES Applications
  • Defense
  • Avionics
  • Energy
  • Loading Applications

The X5400 Industrial Rack Mount PC is manufactured in New Zealand using high-quality industrial components and comes backed by a local Service Team.

Contact STX Technology for more information or to request a quote.

  • Engineered and Built for Tough Environments
  • Resistive or Projective Capacitive (PCAP) Touch Screen
  • Solid Steel Construction
  • 19" Standard Rack Mount (EIA-310)
  • 10~30VDC Power Input
  • Quad Core / Core i5 / Core i7 CPU Options
  • Industrial SSD Hard Drive
  • Network Boot (PXE Boot)
  • Comprehensive Support
 STX Technology Rack Mount Touch Screen


18.5 inch Resistive Touch

STX Technology X7200 Stainless Steel Resistive Touch Panel PC
Touch Panel PC
X5418-C4-RT
Intel® Celeron® 6305U
8GB DDR4 RAM
120GB SSD
Windows | Linux

X5418-C5-RT
Intel® Core™ i5-1135G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X5418-C7-RT
Intel® Core™ i7-1165G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X5418-A3-RT
ARM RK3588S
8GB DDR4 RAM
128GB EMMC
Android 13

Touch Panel Monitor
X5418-M-RT
HDMI | VGA | DP
USB Touch

X5418-M-RT-KVM
HDMI | DP & USB Touch
Up to 100M over CAT6
















18.5 inch Projective Capacitive Touch (PCAP)

STX Technology X7200 Stainless Steel PCAP Touch Panel PC
Touch Panel PC
X5418-C4-PT
Intel® Celeron® 6305U
8GB DDR4 RAM
120GB SSD
Windows | Linux

X5418-C5-PT
Intel® Core™ i5-1135G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X5418-C7-PT
Intel® Core™ i7-1165G7
8GB DDR4 RAM
120GB SSD
Windows | Linux

X5418-A3-RT
ARM RK3588S
8GB DDR4 RAM
128GB EMMC
Android 13

Touch Panel Monitor
X5418-M-PT
HDMI | VGA | DP
USB Touch

X5418-M-PT-KVM
HDMI | DP & USB Touch
Up to 100M over CAT6












Standard Features

  • Carbon Steel
  • 19" Rack Mount
  • 10~30VDC power input
  • Network Boot (PXE Boot)






Optional Features
Display Brightness:
  • High Brightnes 600nits
  • High Brightnes 1000nits
Power:
  • 240VAC
  • 110VAC
  • Other voltages
 System:
  • 256GB / 512GB / 1TB SSD / 2TB
  • Up to 4 Ethernet 1000Mbp
  • Up to 8 RS232 / RS422 / RS485
  • CAN bus
  • High Speed Serial (to 3M Baud)
  • 3G / 4G or 4G / 5G
 Material:
  • Steel
Mounting:
  • 19" Standard Mount
 Finish:
  • Carbon Steel Brushed
  • Steel Electro Polished
  • Matte Black





STX Technology X5400 Stainless Steel Resistive Touch Monitor

Click Here to see the X5400 Rack Mount Monitor Range




Touch
Touch Type Resistive Touch



Display
LCD Size 18.5 inch, 16:9
Colours 16.7 million
Resolution 1920 x 1080 Full HD
Other Supported Resolutions 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1680 x 1050
Contrast Ratio 1000:1
Viewing Angle Horizontal: ±89° , Vertical: 89°
Response Time 14.5 msec
Brightness (Typical) 450 nits (optional 600 or 1000 nits)



System
CPU Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S
System Memory 8 GB (optional 16GB | 24GB | 40GB)
Hard Drive 128GB Industrial SSD (optional 256GB | 512GB)
Operating systems Windows 10 | Windows 11 | Linux | Android 13
Boot Options Network Boot (PXE Boot)



Mechanical & Environmental
Material Carbon Steel
Finish Powder Coated
Mounting 19" Rack mount(EIA-310)
Connectors 3 Pin Power Connector
Power Input 10VDC~30VDC (optional 110~240VAC)



Ports
USB 1 x USB
Serial 1 x RS-232 (optional up to 8 x RS232)
RS485 or RS422
CAN Bus
High Speed Serial RS232/RS422/RS485 (to 3M Baud)
Connectivity 2 x Ethernet 1000Mbps (optional up to 3 Ethernet 1000Mbps)
WiFi Dual Band
Bluetooth
3G / 4G LTE or 4G / 5G



Accessories
Mounting Rack Mount



Accessories include wall mounting brackets, complete range of IP67 / IP68 industrial connectors, IP68 keyboards and mounting accessories.



STX Technology Stainless Steel Floor Stand
STX Technology Stainless Steel Floor Stand
STX Technology Stainless Steel Floor Stand
STX Technology Stainless Tabletop Stand
IP68 Water resistant Silicone Keyboard
IP68 Water resistant Silicone Keyboard





Click Here to find all of our Accessories

Click Here to find all of our Accessories for Touch Panel PCs

X7000 Stainless Steel Touch Computers



X7000 Stainless Steel Touch Monitors



X7500 Stainless Steel Panel PC Range


X7000 Stainless Steel Touch Computer Range X7000 Harsh Environment Touch Monitor Range  X7500 Stainless Steel Panel PC Range
  • Stainless All-In-One Computer
  • IP67 / IP68 / NEMA 6 Connectors
  • Fanless Design
  • Stainless Touch Monitor
  • IP67 / IP68 / NEMA 6 Connectors
  • HDMI / VGA / DVI / DP Options
  • Stainless All-In-One PC
  • IP67 / IP68 / NEMA 6 Connectors
  • VESA Mount
